Hand pumps have an important place in marine and yacht hydraulics.
The Micropac PMP pump unit offers an anodised alloy and stainless steel external package for an extended service life for use on mineral oil.
The unit is used worldwide in a merchant marine safety critical application. Non return valves are poppet and soft seat for very low leakage and reliability.

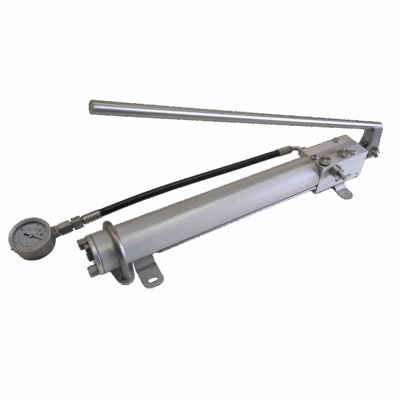

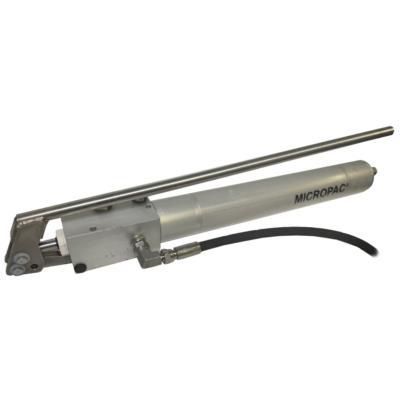

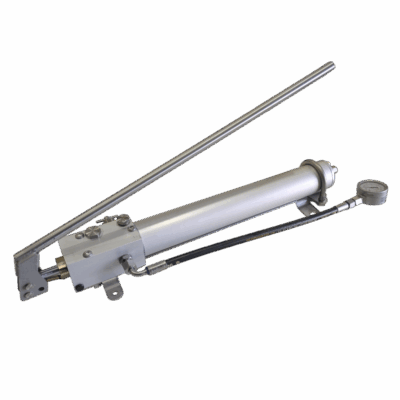

Our Micropac PMP series hand pump offers an integrated hand pump and reservoir providing 5.8cc per double stroke to 700 bar and a 450cc reservoir capacity. Materials are anodised alloy 6082T6 and 316 stainless. A hold/release valve and pressure relief valve are options.

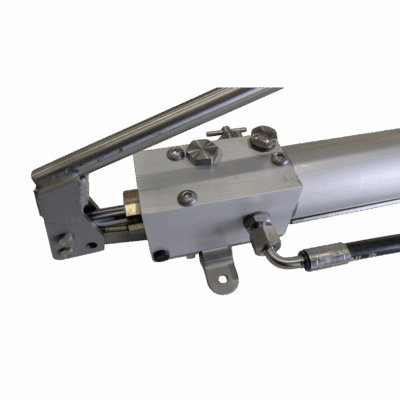

Our hard chrome plated 316 stainless piston rod running in a bronze bearing offers long term corrosion resistance above or below deck. The use of anodised aluminium alloy and stainless 316 provides a very cost effective pump unit, extended service life in harsh environments and low mass.
The standard model bolts down to a bench, rig or frame using three through holes on the hand pump. Some users do simply carry the unit round and use in different orientations resting on the ground or a bench. That works well. We also offer a neat 316 stainless base plate that offers flanges either end of the pump and some compatibility with the mounting centres used on a steel competitor pump. Either bolt this version down or carry it around, the base flanges offering enhanced support.
Contact us to discuss your PMP pump application.
Technical Specifications
| Pressure: | 1 – 700 bar |
| Stroke volume: | 5.8cc per double stroke, double acting |
| Materials: | 316 stainless steel and anodized alloy 6082T6 |
| Seal options: | Nitrile, optional ‘Viton’ fluorocarbon |
| Fluid options: | Mineral oil. Consult factory on other fluids. |
| Options available: | 4 way valve for double acting cylinders. Base mount option. |
